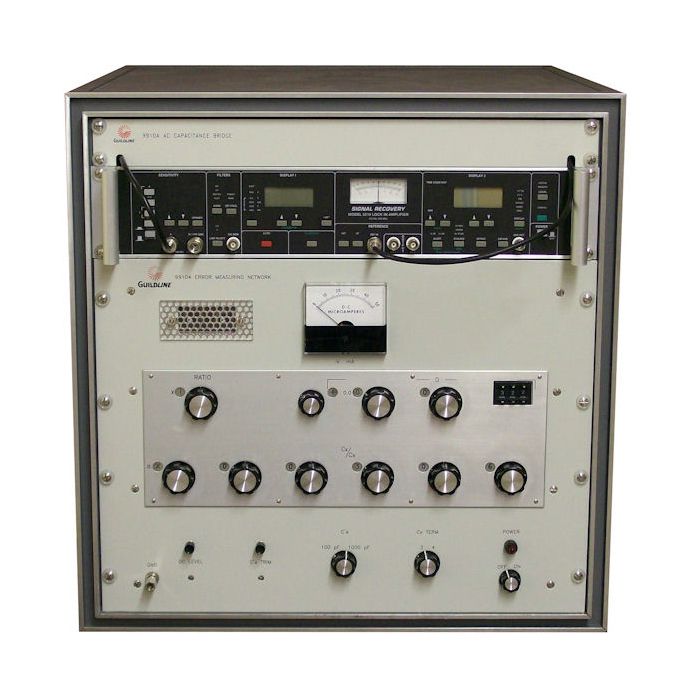

9910A AC High Voltage Capacitance and Inductance Bridge

• Better than 15 ppm accuracy, permanent
• Direct reading, six-digit measurements of capacitance from 100 pf to 1000 µF
• Dissipation factor up to 11.1 percent
• Working Voltage to 50 kV with 9911
• Safe to operate, even into Megavolt region
• Ideal for measuring low-loss, high voltage, power cables, insulators, transformers, P.F. correction capacitors and reactors

• 9910A High Voltage Capacitance Bridge is a measurement standard employing the AC Current Comparator principle. The Current Comparator principle is applied to the measurement of ratio and dissipation factors of high voltage capacitors in a similar manner to the classical Schering Bridge but with greatly improved accuracy and resolution. The Model 9910A High Voltage Capacitance and Inductance Bridge brings the superior accuracy of the Current Comparator to those applications too stringent or demanding for conventional Schering Bridges. Referred to an external gas-filled standard capacitor, accuracy and resolution are better than 15 ppm. The instrument is ideally suitable for low-cost, high voltage, power cable measurements.
