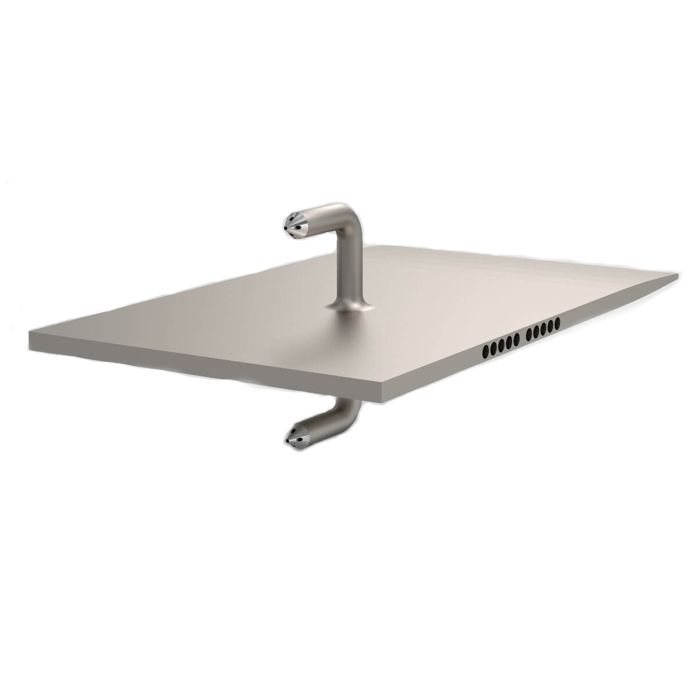

Custom Multi-hole probes

Multi-hole probes 3, 5 or 7 holes (or more on request)

Probe Vectoflow

Panoramica

  • Due to our manufacturing technology, nearly all kinds of probe geometries are feasible. Adapt the probe exactly to your needs. Just send us the desired geometry or the problem to solve.

Specifiche

  • Geometry TBD by customer
  • Number of pressure holes TBD by customer
  • Size TBD by customer
  • Min. tip diameter 0.9 mm
  • Tip geometry TBD by customer
  • Material Stainless steel, Titanium, Inconel, plastics
  • Mounting method TBD by customer
  • Connections TBD by customer
  • Reference TBD by customer
  • Temperature range Up to 1000°C (1800 °F)
  • Angle measurement range ± 160° (depending on number of holes)
  • Angle measurement accuracy Less than ± 1°
  • Velocity measurement range 3 m/s (10 ft/s) up to Mach 2.0
  • Velocity measurement accuracy Less than ± 1 m/s (3 ft/s)
  • Max. frequency resolution Up to 50 Hz (dependent on probe geometry, frequency calibration possible)

Maggiori info sulle Probe

You imagine a special geometry of a probe for a particular measurement or to improve the quality of your measurement? You have components with a very complex inner channel structure that are not realizable with conservative manufacturing methods? Our innovative additive manufacturing method makes it possible to produce nearly every geometry of a probe or another component. Furthermore, products like thermocouples can be integrated easily in Vectoflow probes to avoid a complex cabling.
